Elaflex Rubber Expansion Joints
Elaflex premium rubber bellows are available in 13 different rubber compounds and sizes from DN25 to DN1000.
RedBand Elaflex Bellows
RedSpot Elaflex Bellows
Rotex Elaflex Bellows
BlackBand Elaflex Bellows
YellowBand G Elaflex Bellows
YellowBand LT Elaflex Bellows
YellowSteel GS Elaflex Bellows
YellowSteel HNBR Elaflex Bellows
OrangeBand Elaflex Bellows
GreenBand Elaflex Bellows
WhiteBand Rubber Bellows
BlueSpot Rubber Bellows
The many thousands of rubber/flange/restraint combinations ensure FlexEJ can help you select a rubber bellows expansion joint for long term performance in your specific application.
PRODUCT GUIDES
ELAFLEX RUBBER BELLOWS
WHAT ARE ELAFLEX RUBBER BELLOWS?
PREMIUM-QUALITY PIPE EXPANSION JOINTS WITH…
RANGE
An unrivalled range of bellows materials, sizes and accessories to suit most applications.
Performance
Manufactured in Germany Elaflex offer high quality and trouble fee long term operation.
Application
FlexEJ will help you select the right bellows for the application.
Stock
Core range next day from our UK stock, 1000’s of combinations to order.
Features of the Elaflex Chemical Hose
Temperature is the most critical as it directly influences the choice of rubber – but also the actual pressure capability of the bellows. The stated maximum rated pressure is maintained up to around 50ºC for most rubber bellows, for higher temperatures check the data in the Range tab.
The Elaflex Rubber Bellows range
FlexEJ has the full range of Elaflex Rubber Bellows, flanges, restraints and accessories available:

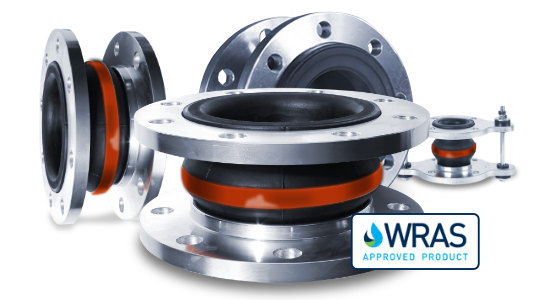

Elaflex RedBand ERV-R
DN25 to DN1000
Elaflex RedBand ERV-R
Butyl (IIR) / EPDM WRAS approved rubber bellows

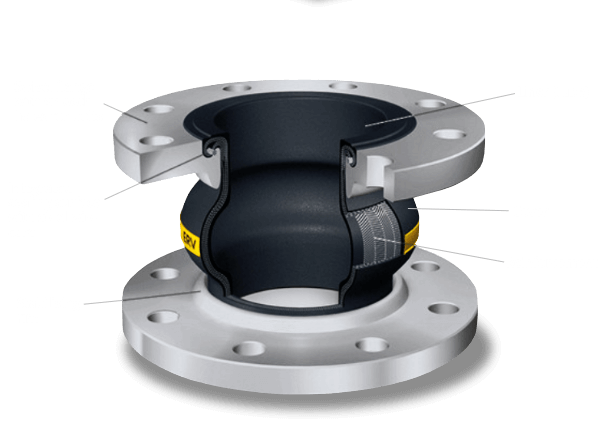

Elaflex RedBand – Butyl (IIR) / EPDM, seamless, low permeation liner with PA textile cord, Butyl rubberized reinforcement and EPDM, ozone proof, heat resistant cover.
Suitable for drinking water, cold and warm waste water, seawater, cooling water, water with chemical additives, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones.
Not suitable for all mineral oil products, cooling water with oily corrosion preventatives, oily compressor air.

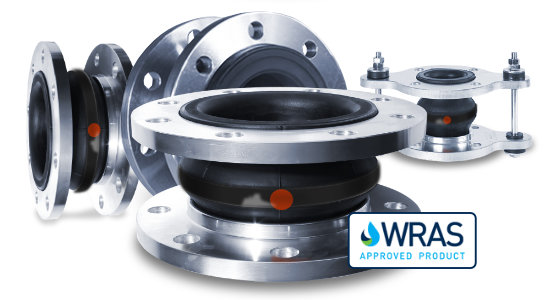

Elaflex RedSpot ERP
DN25 to DN250
Elaflex RedSpot ERP
Butyl (IIR) / EPDM WRAS approved rubber bellows
Butyl (IIR) / EPDM, seamless liner with PA textile cord reinforcement and EPDM cover.
Suitable for sanitary installations, highly flexible, for cold and warm water, pool water, sea water, drinking water.
Not suitable for all mineral oil products, cooling water with oily corrosion preventatives, oily compressor air.

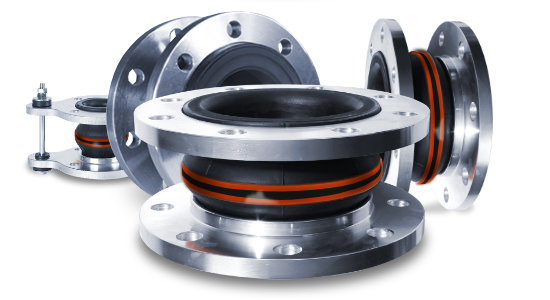

Elaflex DoubleRed ROTEX
DN25 to DN1000
Elaflex DoubleRed ROTEX
EPDM DIN 4809 rubber bellows
EPDM, hot water resistant, seamless, high abrasion resistance liner with Polymer textile cord, hot water and hydrolysis proof reinforcement and EPDM, ozone proof, heat resistant cover.
Suitable for hot heating water, cooling water and hot air. Approved to DIN 4809.
Not suitable for drinking water, cooling water with oily additives, oily compressor air, long term exposure to steam.

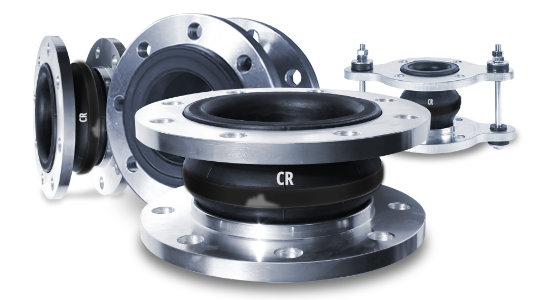

Elaflex BlackBand
DN25 to DN1000
Elaflex BlackBand ERV-CR
Chloroprene CR rubber bellows
Chloroprene CR, seamless, abrasion resistant liner with PA textile cord reinforcement and Chloroprene CR cover.
Suitable for water, swimming pool water, sea water, waste water (weakly sour or alkaline) or oil containing cooling water with oily additives, lubricating oil, grease and air, compressed air.
Not suitable for drinking water, acids, alkalis, chemicals, heating oil, diesel, gasoline and jet fuel, petroleum, solvents, other hydrocarbons and hot compressed air.

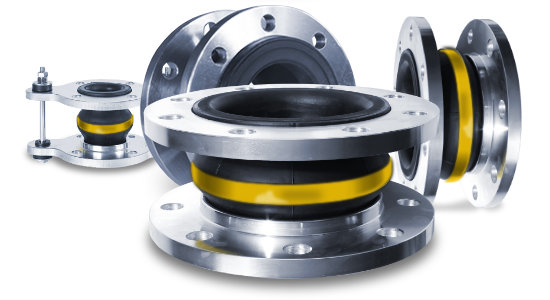

Elaflex YellowBand ERV-G
DN25 to DN1000
Elaflex Yellowband ERV-G
NBR (nitrile) rubber bellows
NBR (nitrile), seamless, abrasion resistant liner with PA textile cord reinforcement and Chloroprene CR cover.
Suitable for Petroleum based products, fuel ethanol blend e.g. E 85 and DIN EN fuels up to 50% aromatic content, also town gas and natural gas, except for LP gas.

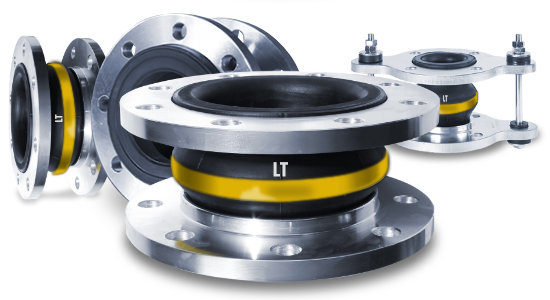

Elaflex YellowBand ERV-GLT
DN25 to DN300
Elaflex YellowBand ERV-GLT
NBR (nitrile) Low temperature rubber bellows
NBR (nitrile), seamless, high abrasion resistance liner with PA textile cord reinforcement and Chloroprene CR cover.
Suitable for low temperature applications for petroleum based products, diesel, heating oil, aviation fuel JET A1, kerosene, petroleum and gasoline

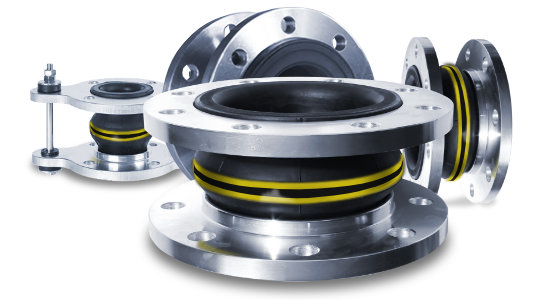

Elaflex YellowSteel ERV-GS
DN25 to DN600
Elaflex YellowSteel ERV-GS
NBR (nitrile) Fire Resistant ISO 15540 rubber bellows
NBR (nitrile), seamless, abrasion resistant liner with steel wire cord reinforcement and Chloroprene CR cover.
Suitable for Petroleum based products, DIN EN fuels up to 50% aromatic content, cooling water with oily anti-corrosion additives, lubrication and hydraulic oil, seawater.

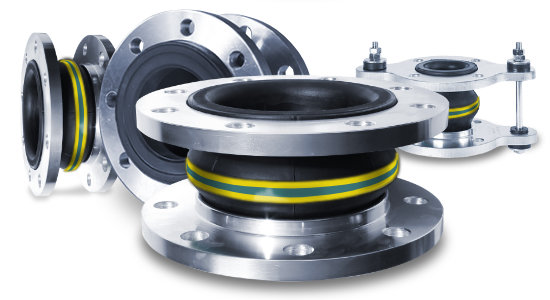

Elaflex YellowSteel ERV-GS HNBR
DN25 to DN600
Elaflex YellowSteel ERV-GS HNBR
HNBR (nitrile) Fire Resistant ISO 15540 rubber bellows
HNBR (nitrile), seamless, high abrasion resistance liner with steel wire cord reinforcement and Chloroprene CR cover.
Suitable for Petroleum based products, DIN EN fuels up to 50% aromatic content, cooling water with oily anti-corrosion additives, lubrication and hydraulic oil, seawater. Very good aging, weathering and ozone resistance

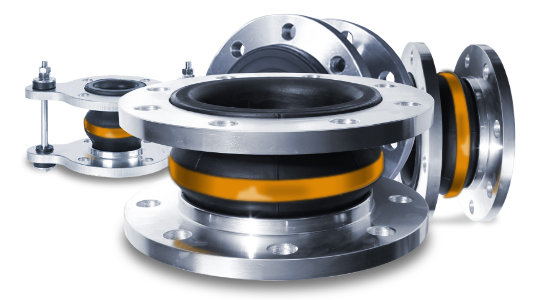

Elaflex OrangeBand ERV-OR
DN25 to DN100
Elaflex OrangeBand ERV-OR
NBR (nitrile) EN589 rubber bellows
NBR (nitrile), seamless liner with PA textile cord reinforcement and Chloroprene CR, pricked cover.
Suitable for Liquid Petroleum Gas (LPG) to EN589. For tank trucks and refuelling stations

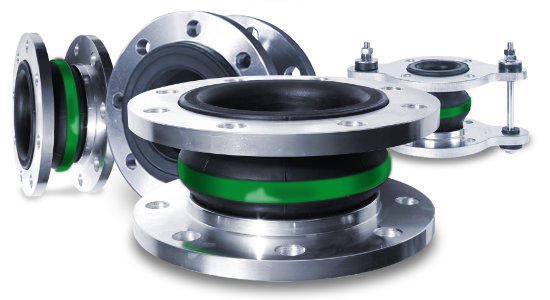

Elaflex GreenBand ERV-GR
DN25 to DN700
Elaflex GreenBand ERV-GR
Hypalon (CSM) rubber bellows
Hypalon® (CSM), seamless, high abrasion resistance liner with PA textile cord reinforcement and Hypalon (CSM) cover.
Suitable for Chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air
Elaflex Whiteband ERV-W
DN25 to DN600
Elaflex WhiteBand ERV-W
NBR light grey FDA-21CFR 177.2600 approved rubber bellows
NBR light grey, seamless, abrasion resistant liner with PA textile cord reinforcement and Chloroprene (CR) cover.
Suitable for Foodstuffs, also food containing oil and fat.
Not suitable for drinking water.

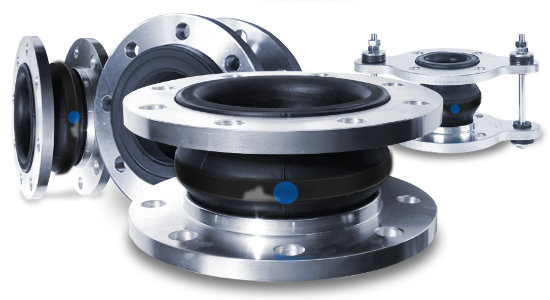

Elaflex BlueSpot ERV-BR
DN25 to DN300
Elaflex BlueSpot ERV-BR
BR/NR rubber bellows
BR/NR, seamless, high abrasion resistant liner with Polyester textile cord and BR/NR cover.
Suitable for abrasive media, sludges, slurries, emulsions, solid/liquid mixtures and powders, Carbon Black.
